Electrical & Wiring

Diagnostics-first electrical work: fixing what’s wrong, confirming what’s right, and leaving you with wiring that’s serviceable. From intermittent no-starts to swap harness cleanup and cluster repairs.

Request Help See Examples

What You Can Expect

The goal is reliability and repeatable serviceability. Work is approached like a troubleshooting job, not a guess.

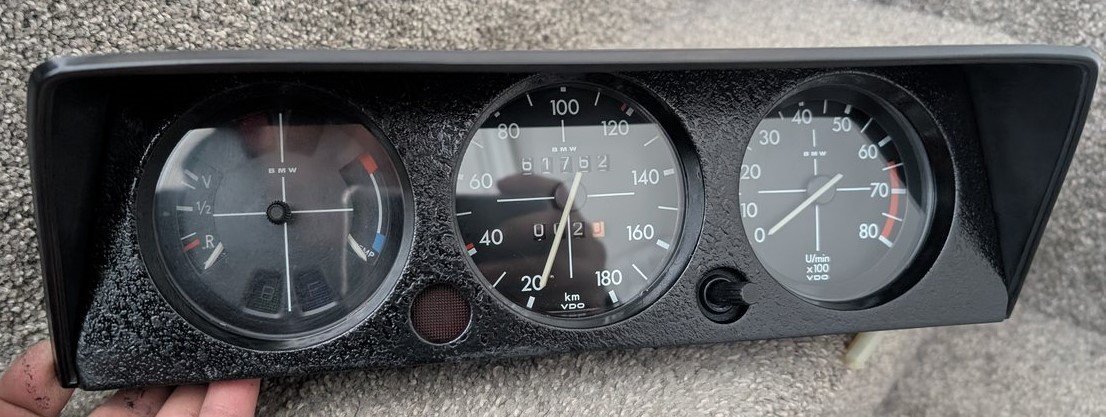

Cluster repair example

Cluster & Instrument Repairs

Tracing faults, repairing connections, and confirming function before reassembly.

  • Gauge/cluster issues (no power, intermittent, backlight problems)
  • Connector pin checks and continuity testing
  • Practical repairs to restore operation

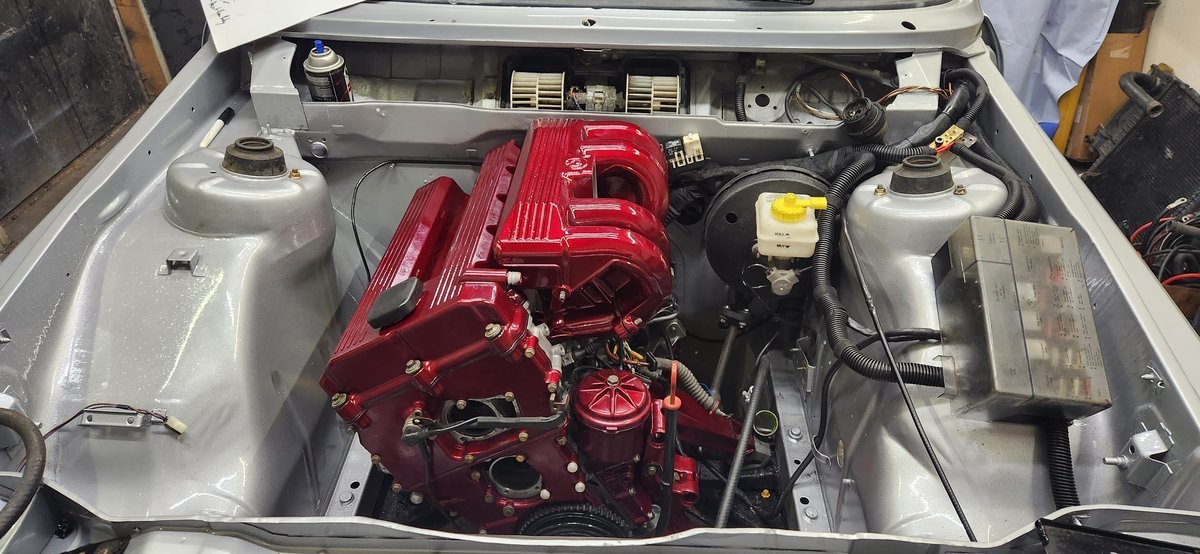

Harness cleanup and swap wiring

Harness Cleanup

Cleaning up old wiring, removing junk, and making it easier to diagnose and service later.

  • Repair damaged conductors / poor splices
  • Re-route for heat protection and abrasion resistance
  • Labeling + logical grouping where helpful

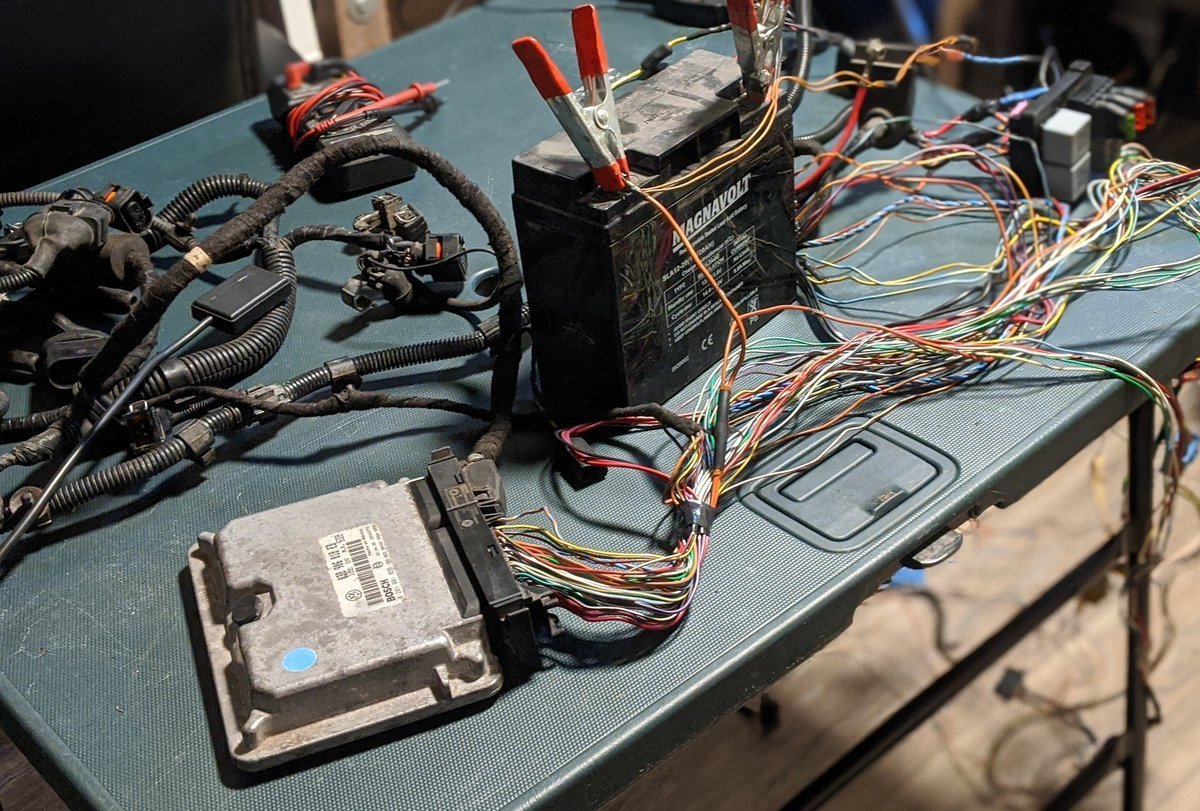

Standalone harness built on bench

Failure Recovery

Recovering from melted/burned harness sections with a focus on safe, reliable operation.

  • Identify root cause (shorts, routing, incorrect fusing, etc.)
  • Repair/replace affected wiring sections
  • Verify operation under load where applicable
Real examples from your photo tree: click any image to enlarge.
Cluster repair example

Cluster Repairs

Targeted fixes for common electrical failures and intermittent issues.

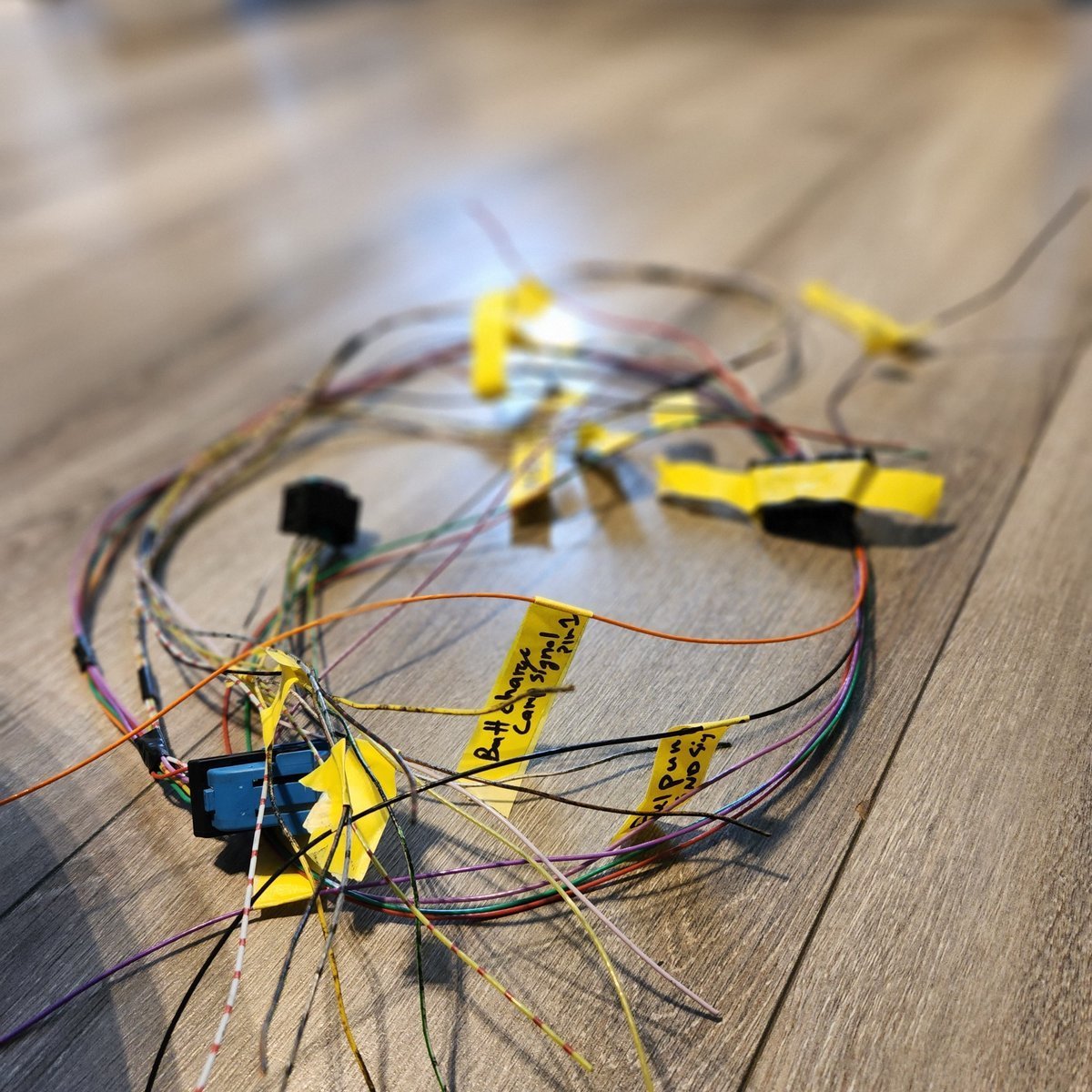

Harness sorting and routing

Harness Sorting

Sorting and organizing wiring for serviceable routing and future diagnostics.

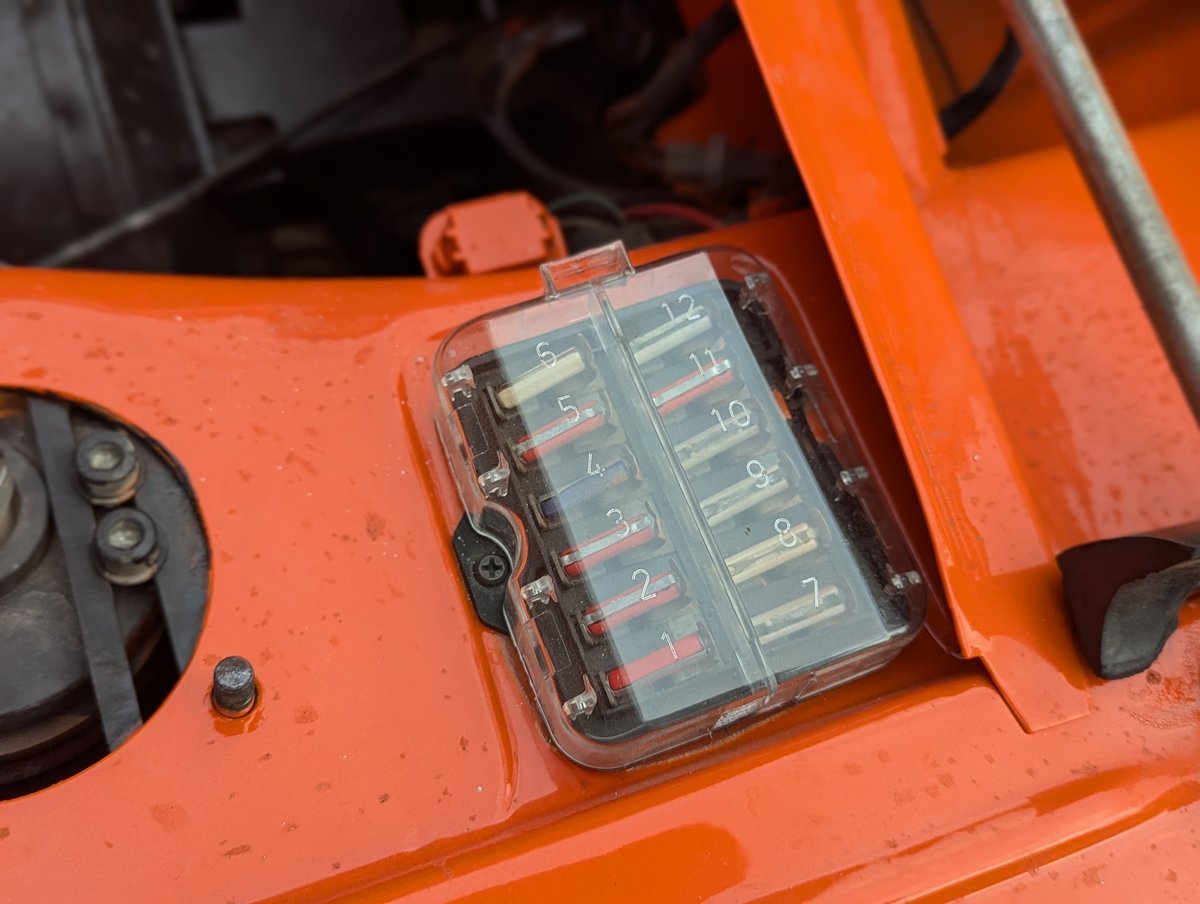

Fusebox and power distribution cleanup

Fusebox / Power Distribution

Cleaning up power distribution so the system makes sense and holds up.

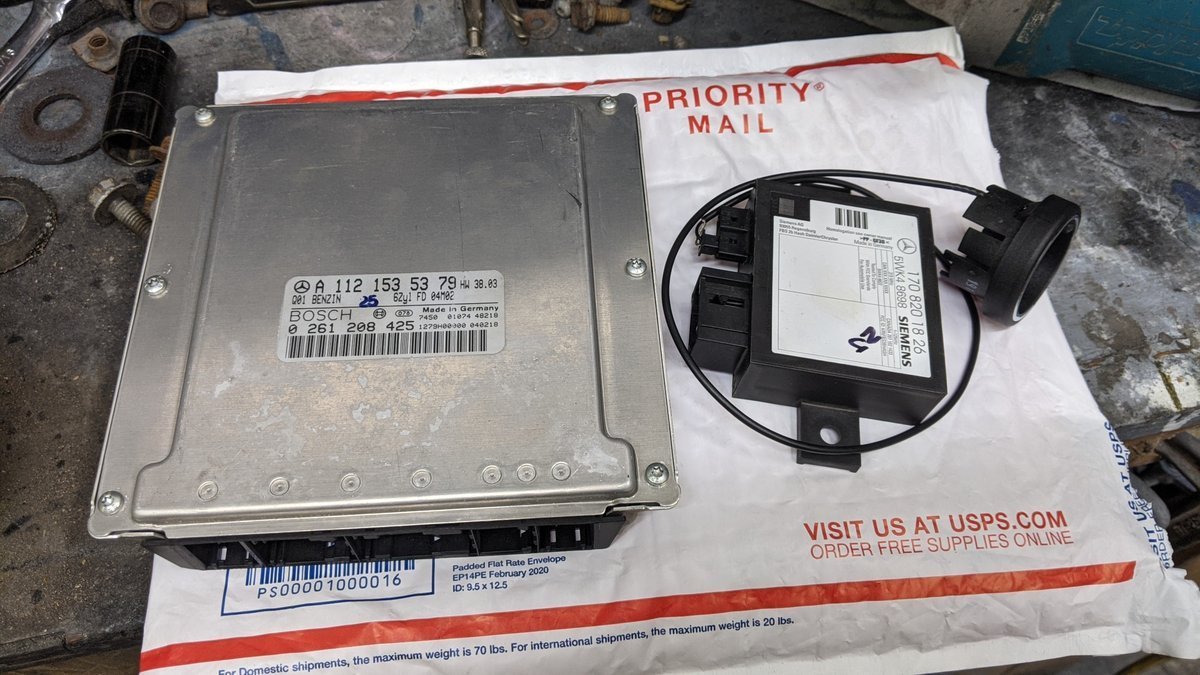

Standalone ECU wiring

Swap Wiring Support

Practical wiring support for swap projects: planning, cleanup, and integration.

How Electrical Jobs Are Approached

The workflow depends on the car and the symptoms, but the structure stays consistent.

1) Intake

Symptoms, history, and what changed recently. Photos and prior notes help a lot.

2) Diagnose

Confirm power/grounds, test circuits, isolate the failure point, and avoid guesswork.

3) Repair + Validate

Repair the fault, verify function, and confirm the fix holds under normal use.

Important: electrical issues can have multiple contributing causes. Work is performed based on inspection and testing. Final outcomes depend on vehicle condition and prior modifications.

Need Help With an Electrical Issue?

Send photos of the area, describe the symptoms, and tell me what changed recently. I’ll confirm if it’s a fit and what the next step is.
